Optics and Light Source Technology Group

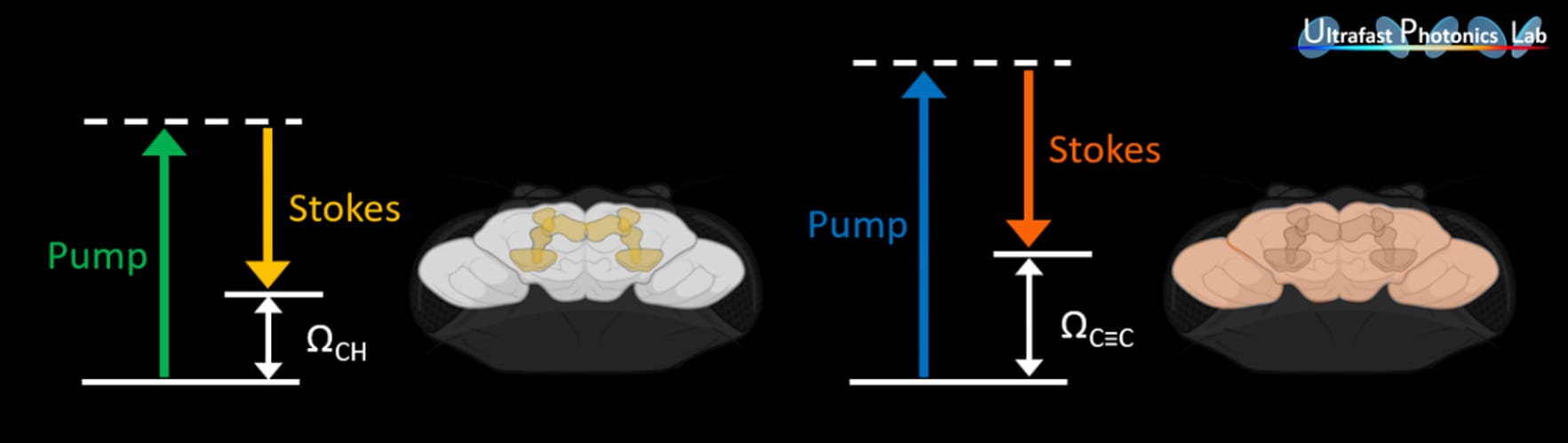

Biomedical Raman Imaging
Our research team is dedicated to developing cutting-edge biomedical imaging technologies. While traditional Spontaneous Raman techniques can identify molecular fingerprints by measuring chemical bonds through light scattering, they are hindered by extremely weak signals. This has long resulted in bottlenecks such as excessive measurement times and difficulty in observing dynamic systems.
To overcome these challenges, our team utilizes Coherent Raman techniques, which enhance signal intensity by approximately eight orders of magnitude compared to traditional methods. This technology offers several advantages, including being non-invasive and requiring no fluorescent labeling. Furthermore, it effectively addresses the issue of photobleaching typically caused by long-term excitation of fluorescent molecules, and is now widely applied in biological tissue imaging.
Biomedical Raman Imaging
Our research team is dedicated to developing cutting-edge biomedical imaging technologies. While traditional Spontaneous Raman techniques can identify molecular fingerprints by measuring chemical bonds through light scattering, they are hindered by extremely weak signals. This has long resulted in bottlenecks such as excessive measurement times and difficulty in observing dynamic systems.
To overcome these challenges, our team utilizes Coherent Raman techniques, which enhance signal intensity by approximately eight orders of magnitude compared to traditional methods. This technology offers several advantages, including being non-invasive and requiring no fluorescent labeling. Furthermore, it effectively addresses the issue of photobleaching typically caused by long-term excitation of fluorescent molecules, and is now widely applied in biological tissue imaging.

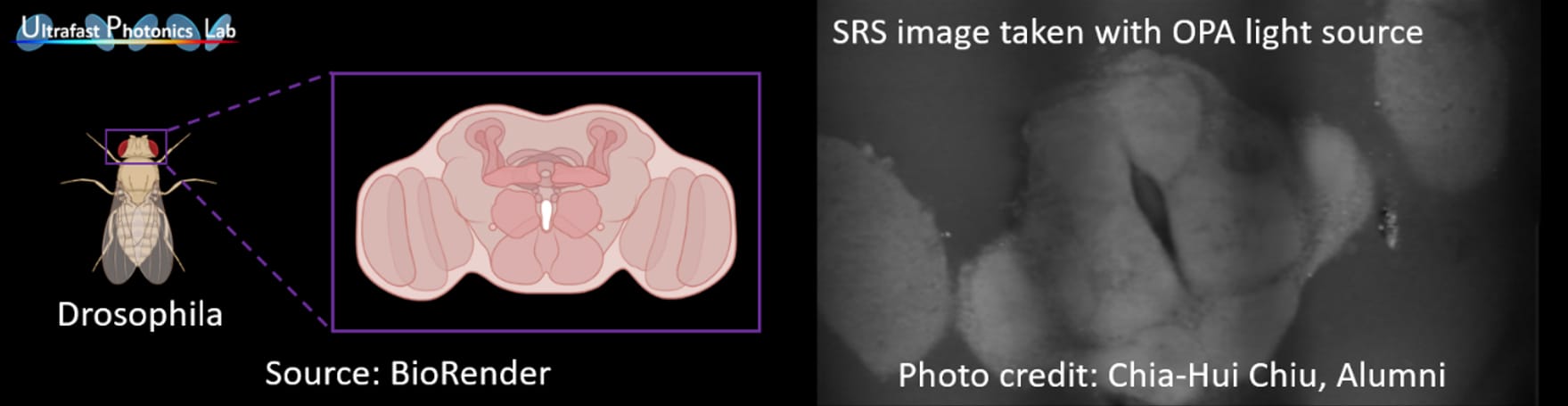

Additionally, our research team works in close collaboration with the Center for Brain Science, utilizing the innovatively developed Multi-plate continuum (MPC) technology to generate an ultra-broadband light source covering 600 to 1300 nm. This light source features high spectral energy density, and its operating wavelength and frequency difference can be precisely controlled using optical filters. Leveraging this novel light source, we are currently conducting in-depth research on key life science issues, such as the mechanisms of memory formation.

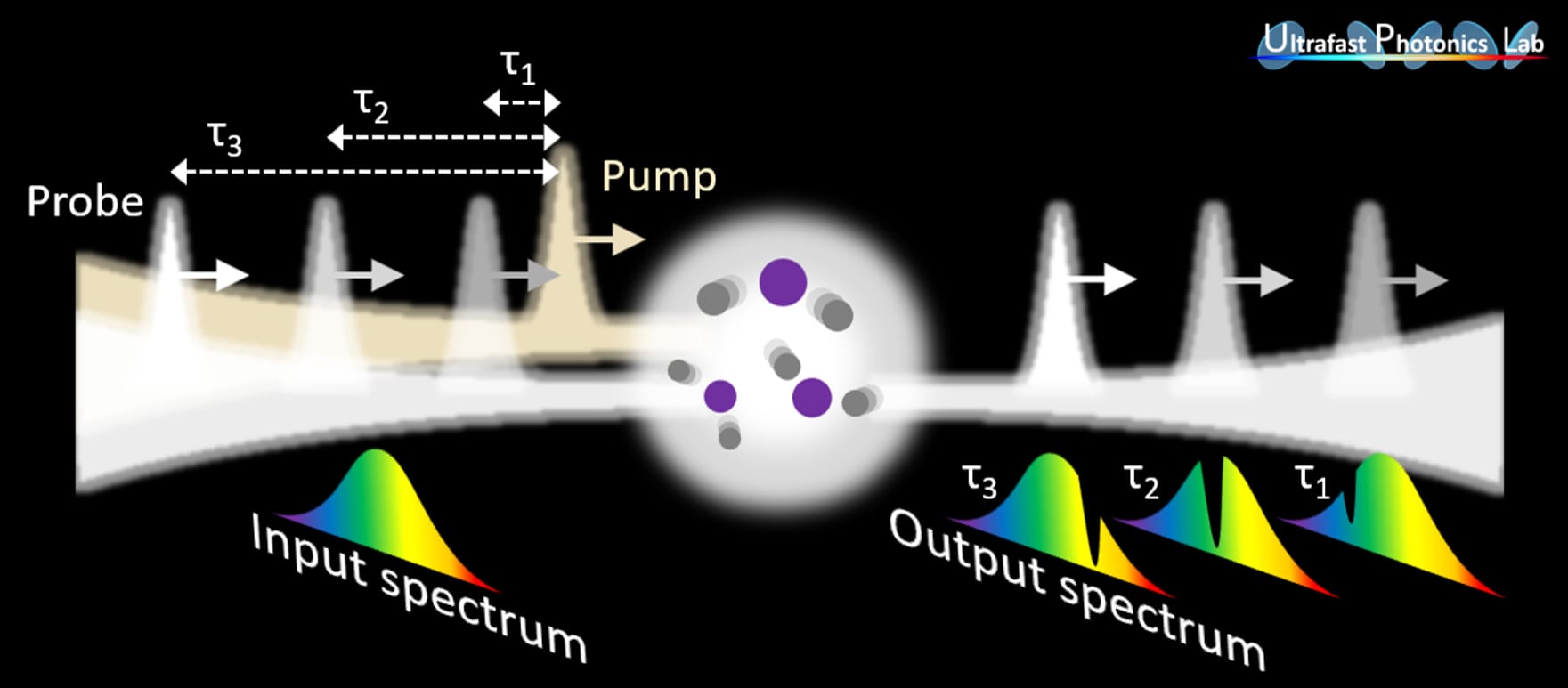

High-Repetition-Rate Transient Absorption Spectroscopy
The unique rotational and vibrational resonance frequencies of a molecule can be regarded as its chemical fingerprint. While sample compositions can be identified by measuring static absorption spectra, analyzing the evolution of molecular states during chemical reactions requires extremely high temporal resolution.
Our research team utilizes the “Pump-probe” measurement technique to capture subtle changes in the instantaneous absorption spectra of samples, thereby deducing the dynamical processes of molecular evolution or structural transformation.

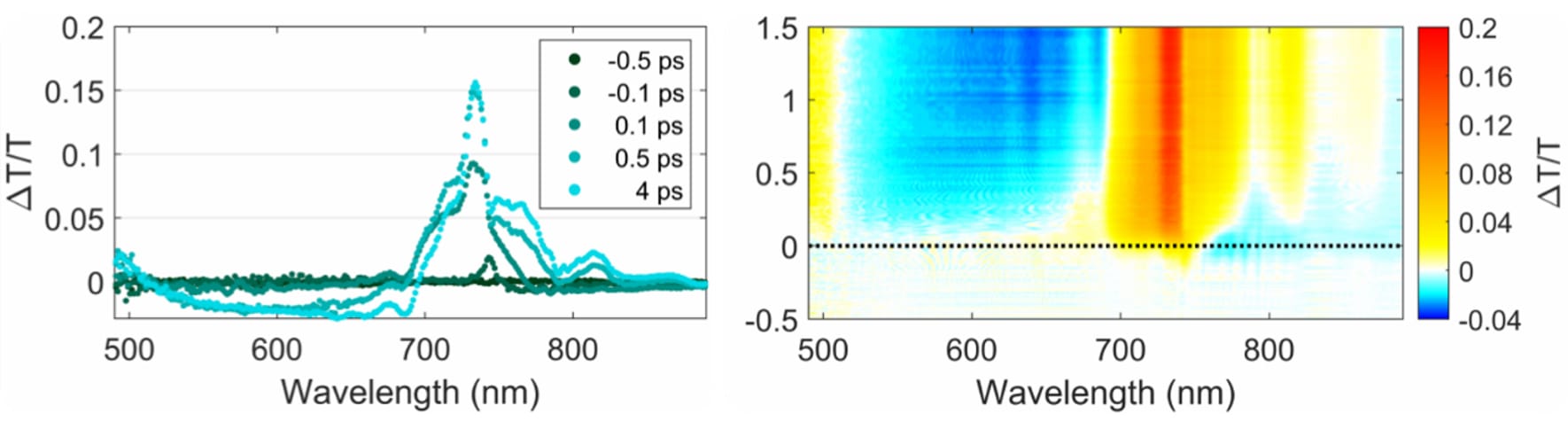

By integrating our internally developed MPC (Multi-plate continuum) supercontinuum white-light source and applying dispersion compensation technology for compression, we can achieve pulse widths of less than 5 femtoseconds (fs). This exceptional temporal resolution enables us to observe ultra-fast molecular dynamics. Currently, the team has successfully applied this technology to Titanium-sapphire (Ti:sapphire) laser systems and precisely measured the transmission spectral dynamics of Perovskite, a novel solar energy material.

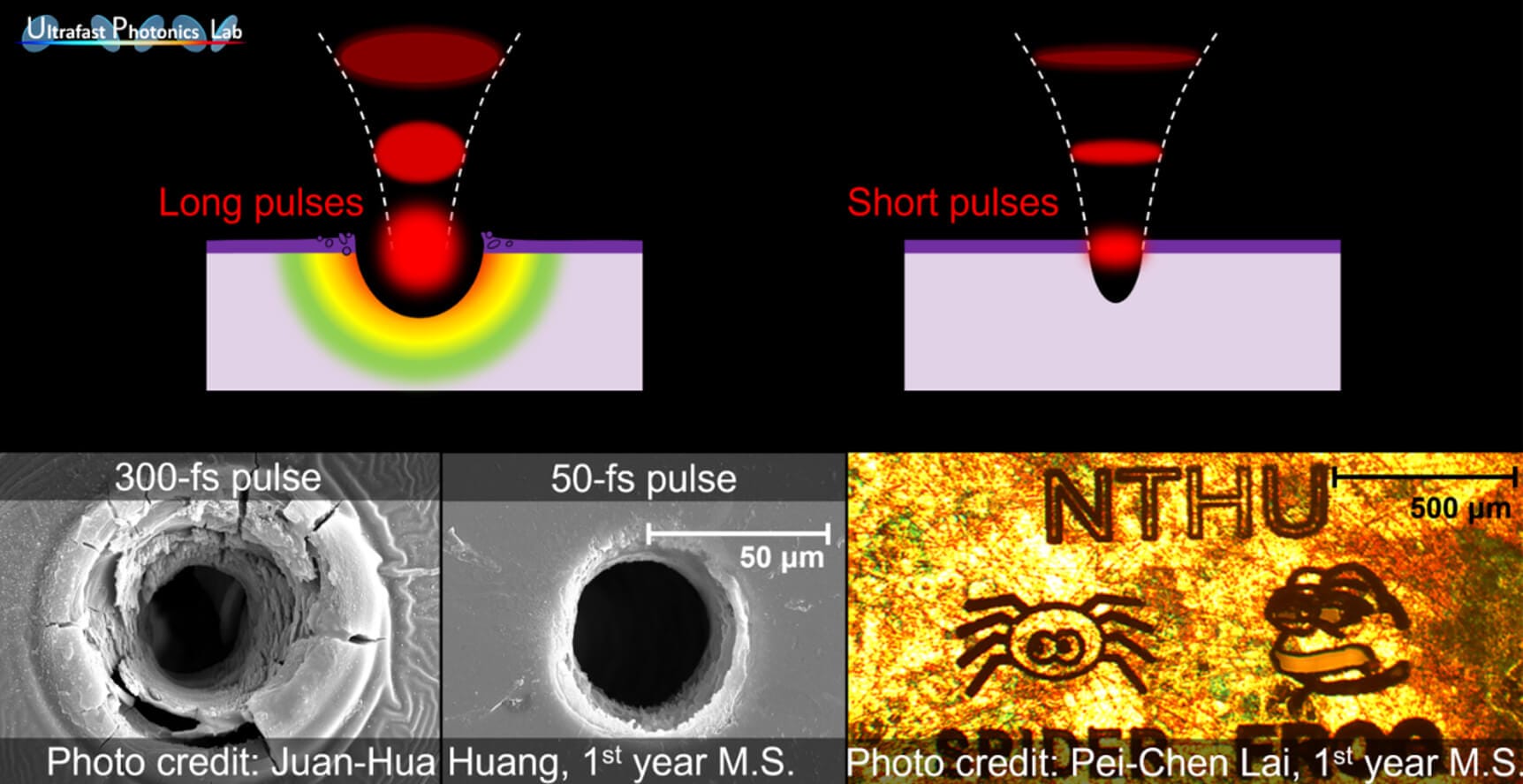

Micro-machining
To meet the demands of electronic product miniaturization and advanced semiconductor manufacturing, our research team is deeply engaged in the field of femtosecond laser micro-machining. Because femtosecond lasers have extremely short pulse durations, they significantly suppress heat-affected zones (HAZ), offering processing precision far superior to traditional nanosecond or picosecond lasers.
Based on our experimental comparisons, processing with a 300 fs pulse still leads to protrusions or cracks around the drilled holes due to heat accumulation. In contrast, using a 50 fs pulse confines the reaction strictly to the laser-interacted area, achieving near-perfect precision. Our research team will continue to optimize ultrafast laser parameters to provide more efficient and precise processing solutions for the semiconductor industry.
Nonlinear Pulse Compression
Through nonlinear optical effects, the spectrum of a pulsed laser can be significantly broadened, enabling it to cover a wider range of frequencies. By carefully compensating the phase differences among the various spectral components (e.g., using techniques such as dispersion compensation or pulse compression), the temporal width of the laser pulse can be further shortened to the femtosecond or even sub-femtosecond regime. This combination of spectral broadening and precise dispersion management represents one of the key approaches for generating extremely short laser pulses. The Ultrafast Laser Technologies, Research and Applications Laboratory (ULTRA LAB) focuses on the development of techniques for generating and controlling ultrashort laser pulses. Our research includes nonlinear spectral broadening, pulse compression, and the design and realization of novel ultrafast light sources.
Mid-infrared Generation and Application
The mid-infrared (MIR) spectral region is often referred to as the molecular fingerprint region, as many molecular vibrational transitions occur within this wavelength range. As a result, MIR spectroscopy provides highly selective information about molecular structures and chemical compositions. This capability makes MIR spectroscopy a powerful tool for applications in chemical sensing, materials characterization, environmental monitoring, and biomedical diagnostics.
When combined with ultrashort laser technology, MIR light enables a new class of ultrafast spectroscopic techniques. Ultrafast MIR spectroscopy allows researchers to directly observe molecular vibrations, energy transfer processes, and charge dynamics on femtosecond time scales, providing critical insight into fundamental light–matter interactions.
Beyond spectroscopy, ultrafast MIR laser pulses are also emerging as promising tools for precision laser processing in semiconductor materials. Because MIR wavelengths strongly couple to molecular vibrational modes, they enable selective bond excitation, reduced thermal damage, and the fabrication of novel micro- and nanoscale structures. These unique capabilities open new opportunities in advanced manufacturing and photonic technologies.
